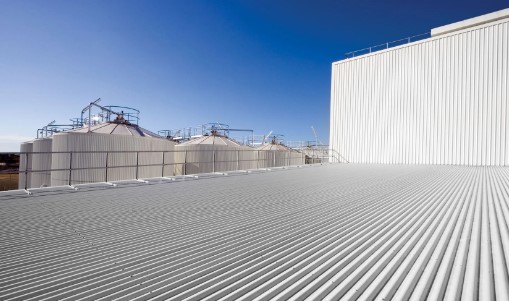

Stratco 900 is a metal trapezoidal roof and wall cladding with 900mm cover and 37mm rib height that is suitable for a minimum roof pitch of three degrees. This allows for long spans and has excellent water carrying ability.
Stratco 900 has a 'square corrugated' form that has the looks and versatility to allow it to blend easily with any building style. Its strong seven rib design lends itself for use on roofing, wall cladding and fencing. Stratco 900 is ideal for architects and builders who are trying to achieve a different look, with maximum serviceability.
Clause B1 Structure: B1.3.1, B1.3.2, B1.3.3 (b, c, f, g, h, j), B1.3.4
Span tables are in accordance with AS/NZS 1170.2:2002 and based on a maximum overall building height of ten metres and a 500 year design return period for strength limit state wind load assessment. Roofing spans specified are suitable for snow loading up to 2kPa in accordance with the New Zealand Metal Roof and Wall Cladding Code of Practice.
Durability in accordance with Table 20 E2/AS1
Rain Washed Roofs
Colorsteel Endura / Colorcote Zinacore B, C, D
Colorsteel Maxx / Colorcote Magnaflow B, C, D, E
Colorsteel Altimate / Colorcote Alumiguard B, C, D, E
Walls and Unwashed Areas
Colorsteel Endura / Colorcote Zinacore B, C
Colorsteel Maxx / Colorcote Magnaflow C, D
Zinc/alum coated steel, Colorsteel and Colorcote products are rated as a Group 1-S material when tested in accordance with ISO 5660:2002 Part 1 & Part 2
Stratco 900 water carrying capacity - Refer Stratco BPIR - www.stratco.co.nz/siteassets/pdfs/bpis/stratco-900-building-product-information-sheet.pdf
Capacity Calculation in accordance with NZ Metal Roofing and Wall Cladding Code of Practice calculators
The versatility of Stratco 900 lends itself to a wide range of details for any application. Standard design details can be accessed from the web: www.stratco.co.nz/nz/roofing/nz-roofing-and-wall-cladding/stratco900/
Alternative details may comply with solutions for trapezoidal roofing found in E2/AS1, or comply with the 4 “D’s” Deflection, Draining, Drying and Durability.
When used with an absorbent, permeable underlay, complying with NZS 2295 2006, Stratco 900 will contribute to compliance with NZBC E3.3.1. Ceiling spaces of sarked roofs, skillion roofs, barrel curved roofs, flat roofs and roofs over moisture laden environments must have provision for adequate ventilation.
Stratco 900 manufactured from Zinc/alum coated steel, Colorsteel, Colorcote or pre-painted aluminium will meet the performance requirement of F2.3.1.
Colorsteel and Colorcote tested in accordance with AS/NZS 4020:2005 passed the requirements for products in contact with drinking water.
NZ Metal Roofing Manufacturers Association Inc. (NZMRM Code of Practice) www.metalroofing.org.nz/cop
NZ Steel www.colorsteel.co.nz/resources/downloads-and-brochures/ Pacific Coilcoaters www.colorcote.co.nz/technical-information/
Supporting evidence provided where requested will apply to the product substrate supplied for the specific project.
The Wind Capacity Tables are based on testing in accordance with AS1562.1-1992 and AS4040.0, 1 & 2-1992. Span tables have been developed by determining wind pressures in accordance with AS4055-2006 for domestic applications and AS/NZS 1170.2:2002 for all other applications.
Roof pitch minimum 3°
Effective cover 900mm
Specify material coating to suit building location/environment
Unpainted metallic coated steel, COLORSTEEL®, including Matte, and ColorCote standard colour ranges - availability and minimum quantities may apply
Stratco flashing details for roofing and wall cladding to be used to meet NZ Building Code, E2/AS1 and NZ Metal Roofing Manufacturers Code of Practice
Allow for thermal expansion of Stratco 900 particularly in darker colours
Purlin spacing not to exceed maximum spans as per Stratco 900 span tables
Stratco 900 wall cladding to use drainage cavity batten
Ensure compatibility when using Stratco 900 roofing/wall cladding with other metal products such as copper to prevent accelerated corrosion
Packs of Stratco 900 sheeting should always be kept dry and stored above ground level on site. If the sheets have become wet, they should be separated, wiped and placed in the open to dry.
Stratco 900 sheets should be laid lapping to sit neatly on the preceding roof sheet.
Cut pre-painted steel material by shear only — use nibblers or hand shears. Friction blades and high-speed saw blades must not be used on metal cladding.
Black lead pencils must never be used for marking aluminium/zinc, and unpainted or pre-painted steel products. Use a pencil of any colour other than black, a marker pen, or crayon.
For full installation details refer: www.stratco.co.nz/siteassets/pdfs/bpis/stratco-900-building-product-information-sheet.pdf
All roofing and cladding products are subject to the cumulative effects of weather, dust and other deposits so the performance and durability of Stratco 900 roofing and wall cladding over time depends on its correct maintenance. For roofing, normal rain washing will remove most accumulated atmospheric contaminants from the top side of roofs.
Areas that do not receive adequate rain washing (known as unwashed areas) require more extensive manual washing.
Roofing and cladding products should be manually washed by either water and a sponge or a soft nylon-bristled brush or by water blasting at pressures of no more than 20MPa. Never use abrasive or solvent based cleaners such as turps, petrol or kerosene.
STRATCO 900
This product has no warnings associated with it.
