Technical Statement
Product Description

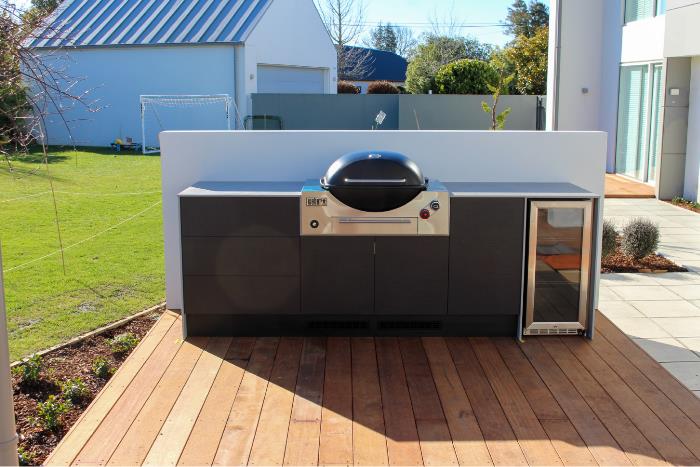

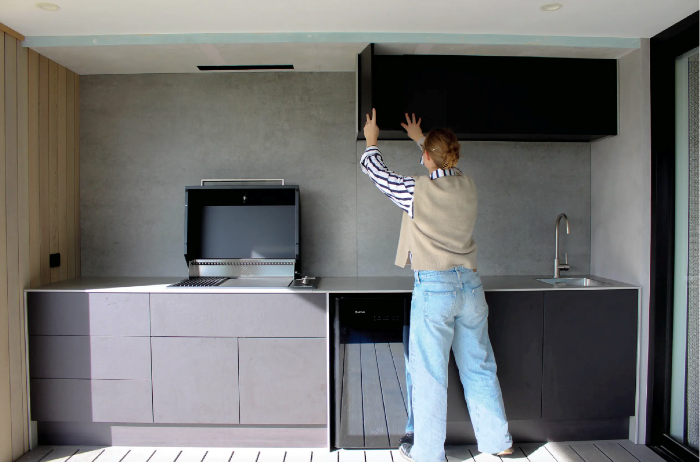

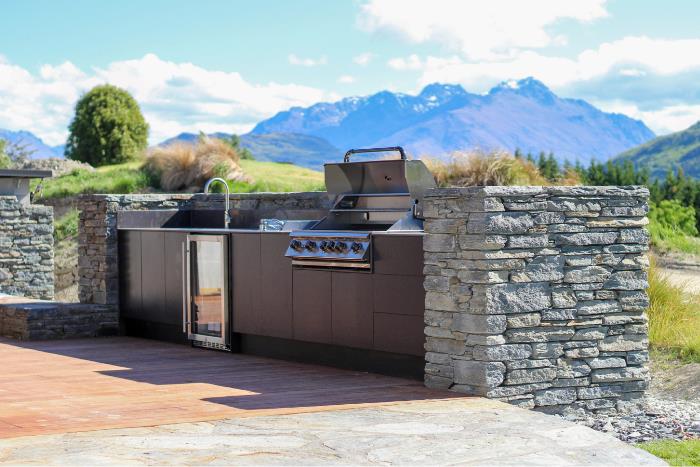

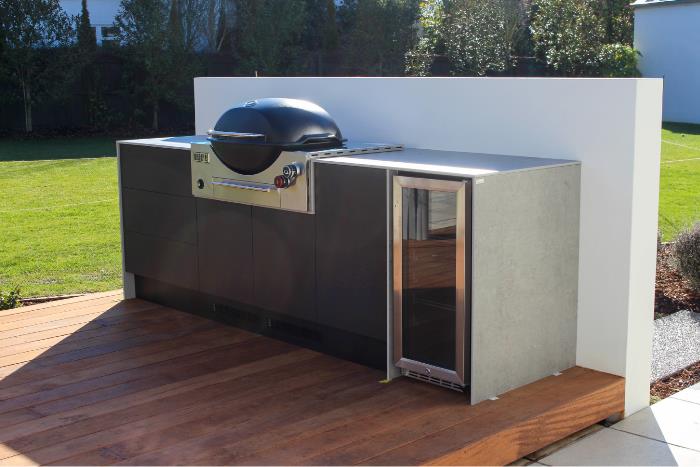

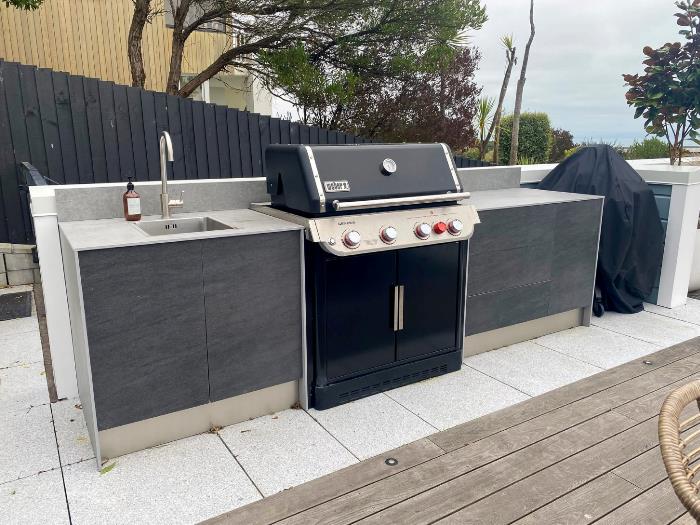

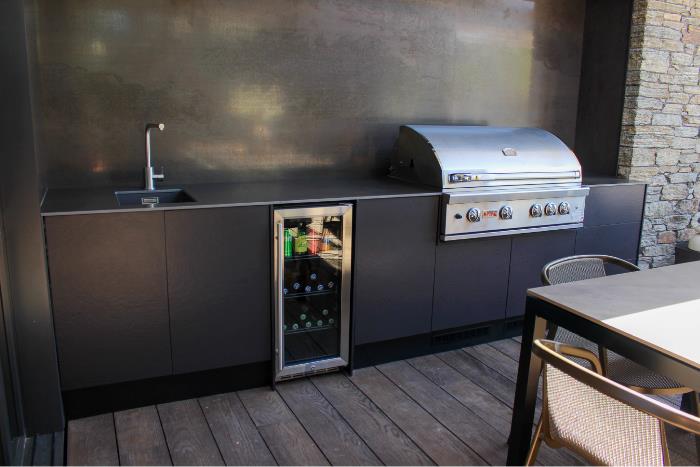

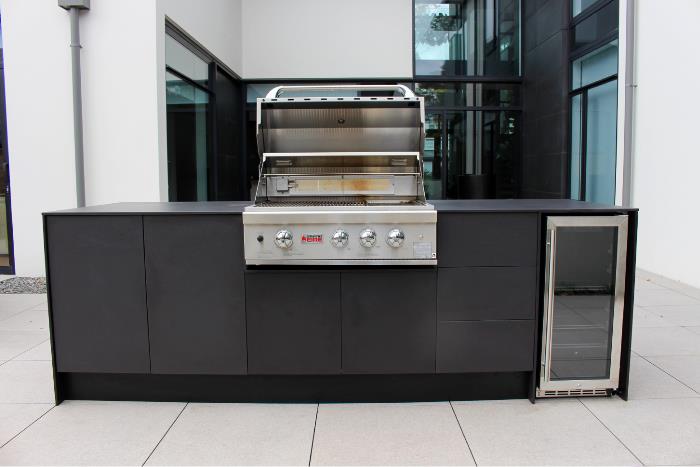

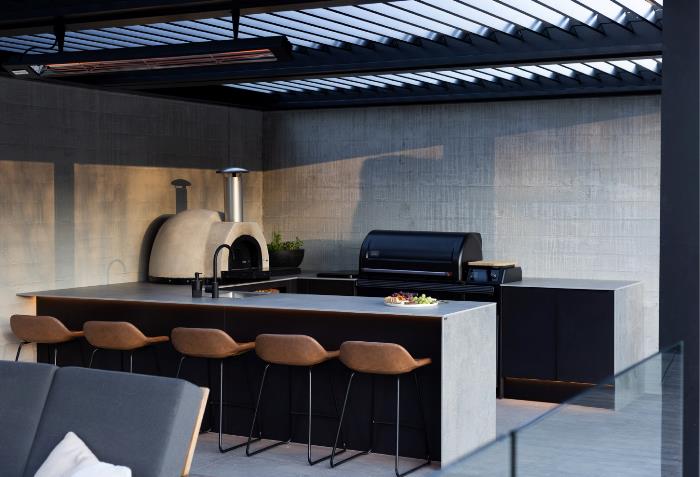

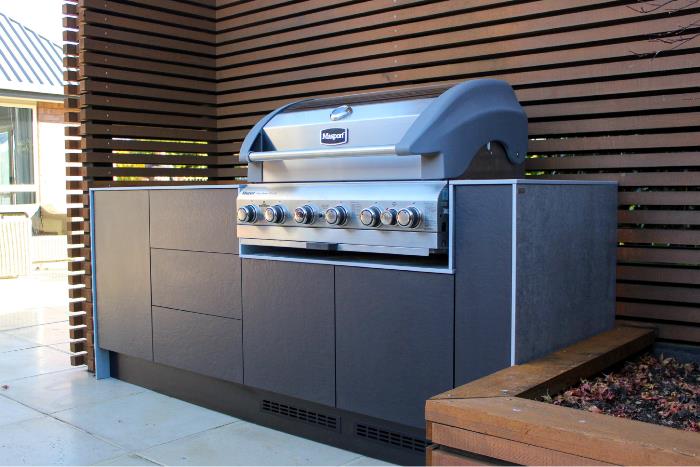

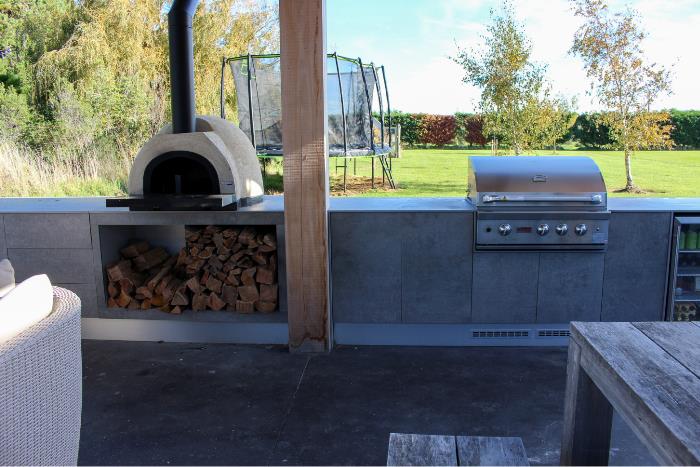

Each module is crafted to strike the perfect balance of form and function, standing 890mm high with a generous 700mm deep benchtop, the ideal working surface for comfort and practicality.Your alfresco kitchen is designed around how you cook, live, and entertain. Want more firepower or a touch of smoke? Add a Traeger, Kamado Joe, or Big Green Egg. With seamless integration for any appliance or BBQ model, we pride ourselves on achieving the perfect fit. Our Wild Kitchen BBQ library is growing rapidly, as our customers get more creative on their choice of cooking appliances.If social seating is part of your vision, consider the Grill Bar. With an extended benchtop depth allowing for seating, a Grill Bar transforms cooking into a shared experience, keeping you right in the middle of the banter and the action.From a sprawling deck to a quiet, intimate courtyard, although we are often asked to build big, we also build small. Each design is personalised to suit your lifestyle and your space, making your alfresco design truly your own.
Scope of use
100% outdoor rated
New Zealand Building Code (NZBC)
The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:
- Clause B2 Durability: Performance B2.3.1(c)
Dekton 12mm Benchtops - UV Stable, Non-porous, Engineered StonePSP PVC 16mm Multiboard - Waterproof foamed PVC BoardLaminex Compact Laminate - Complies to B2 Code with durability of 15 years in correct use casesHettich 304 Stainless outdoor hardware - outdoor ratedAnzor 304 Stainless fixings - outdoor rated
Notes
Kitchens use Dekton 12mm UV-stable, non porous stone, Stable PVC carcasses and 304 stainless steel fixings & Hardware.
Evidence
The product meets the requirements set out in the following documents, or relevant parts of cited standards within the documents:
Dekton 12mm Benchtops - UV Stable, Non-porous, Engineered Stone
PSP PVC 16mm Multiboard - Waterproof foamed PVC Board
Laminex Compact Laminate - Complies to B2 Code with durability of 15 years in correct use cases
Hettich 304 Stainless outdoor hardware - outdoor rated
Anzor 304 Stainless fixings - outdoor rated
Supporting evidence
The product has and can make available the following additional evidence to support the above statements:
Product Criteria
Design requirements
Designed to offer an entertainment space that will stand up to New Zealand's harsh and variable conditions
Installation requirements
Before installation the area requires a solid, stable foundation to be installed on i.e. Decking, Pavers, Concrete Pad. Must be reasonably level (±10mm)
NOT - Grass, Dirt, Gravel, Sand etc
Maintenance requirements
https://acrobat.adobe.com/id/urn:aaid:sc:ap:94849f5c-8076-4548-9d14-e30ef0b1646f
Warrantees
2 years Workmanship
Dekton 12 & 4mm Engineered Stone - Per Consentino Warranty
PSP 16mm PVC Multiboard - Per PSP Warranty
Laminex Compact Laminate - Per Laminex Warranty
Hettich Hardware - Per Hettich Warranty
Building Product Information Requirements
Manufacturer
Legal Trading Name:
Freeform Laminates Ltd
Business Email:
pricing@freeform.co.nz
Contact Number/s:
03 3431515
03 3431515
Product Identifier
DEKTON 12MM BENCHTOPS - UV STABLE, NON-POROUS, ENGINEERED STONEPSP PVC 16MM MULTIBOARD - WATERPROOF FOAMED PVC BOARDLAMINEX COMPACT LAMINATE - COMPLIES TO B2 CODE WITH DURABILITY OF 15 YEARS IN CORRECT USE CASESHETTICH 304 STAINLESS OUTDOOR HARDWARE - OUTDOOR RATEDANZOR 304 STAINLESS FIXINGS - OUTDOOR RATED
Warnings
This product has no warnings associated with it.
