Edgesmith Ngaru Mesh 358

Product Class

Product Description

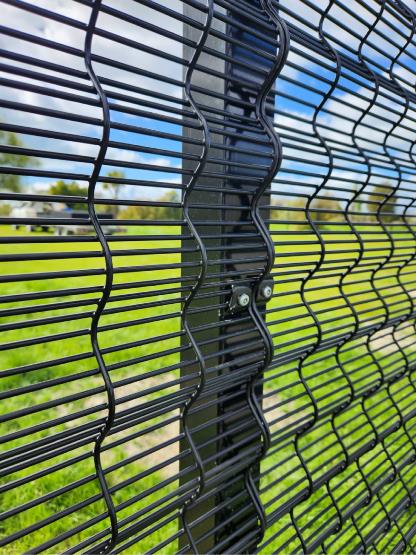

Ngarumesh 358 is a rigid wire mesh panel that combines high strength and security with a stylish modern look. The horizontal ripples both soften the look & add rigidity to the panel meaning that it can be installed without rails.

The same cost as tubular steal or aluminium fencing but much higher security. Absence of horizontal rails reduces the climbing risk and increases visual penetration for security cameras.

Why is it called Ngarumesh 358? 'Ngaru' is the maori word for wave & '358' describes the dimensions of the mesh. The wire grid (centers) are 3 inches wide (75mm), 0.5 inches high (12.5mm) & made from 8 gauge steel wire. Hence Ngarumesh358.

Supported by a limited warranty.  Refer to web site for details.

Scope of use

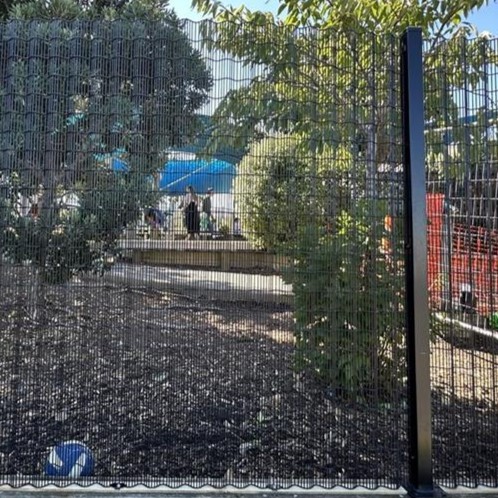

Designed for boundary fencing around

• Schools
• Pedestrian paths along motorways
• sports grounds
• Commercial buildings
• Separation of people and vehicles

Complies with

• Weld Mesh Standard: AS 2423:2002
• Galvanizing Standard: AS/NZS 4680:2006
• Fencing at schools - Design and Specification  Guidance Document

New Zealand Building Code (NZBC)

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

• Clause B2 Durability: Performance B2.3.1(b)

  All components outlined in the product catalogue shall meet NZBC B2.3.1(b) 15 years, assuming reasonable maintenance, and appropriate architectural context.

  Refer to the Edgesmith Ngaru Mesh Balustrade Systems manual for maintenance requirements.

  Mild steel, hot dip galvanised or stainless steel 304 fixings are fit for purpose in NZBC corrosion zones C2, C3 and C4.

  Adequate supporting structure shall be designed by the project designers.

• Clause F4 Safety from falling: Performance F4.3.1, F4.3.4(c), F4.3.4(e)

  The New Zealand Building Code (AS/NZS 1170.1:2002) designates different occupancy types and specifies the load ratings that the system must be capable of withstanding.  The system comprises of the panel, posts, fixings and the structure that the balustrade is being attached to.  These are summarized in Table 3.3 Occupancy Reference

Evidence

The product meets the requirements set out in the following documents, or relevant parts of cited standards within the documents:

Full engineers report can be requested from Edgesmith.

Supporting evidence

The product has and can make available the following additional evidence to support the above statements:

	Lautrec Technology Group Limitied Ngaru Mesh Balustrade PS1 - 140404

Use in Service History

sadfsdfs

Product Criteria

Design requirements

Ngaru Mesh 358 with its absence of horizontal rails reduces the climbing risk and increases visual penetration for security cameras.

• Retaining walls
• Perimeter fencing
• Security fencing

Installation requirements

Refer to Edgesmith website and PS1 for installation guidance.

Maintenance requirements

Maintenance is required to meet any warranty claims.

• Remove Sap from trees
• No contact with water with high mineral content
• No contact with chemicals that may cause damage
• Remove any attachment of foreign articles abrasive to the products
• Remove any plant life of any sort that has grown directly upon or in contact with any portion of the product
• Periodically washing your fence with water, paying attention to areas not rinsed/cleaned during rainfall
• Periodically check all fixings and replacing any that require it

Warrantees

Refer to Edgesmith 5 year warranty available on our website.

Company Product Information

Relationships

Building Product Information Requirements

Manufacturer

Product Identifier

358N-1.2-HPCB

Warnings

This product has no warnings associated with it.
